Club Orlando – Drainage & Edge Detail Focused Commercial Reroof
February 2026

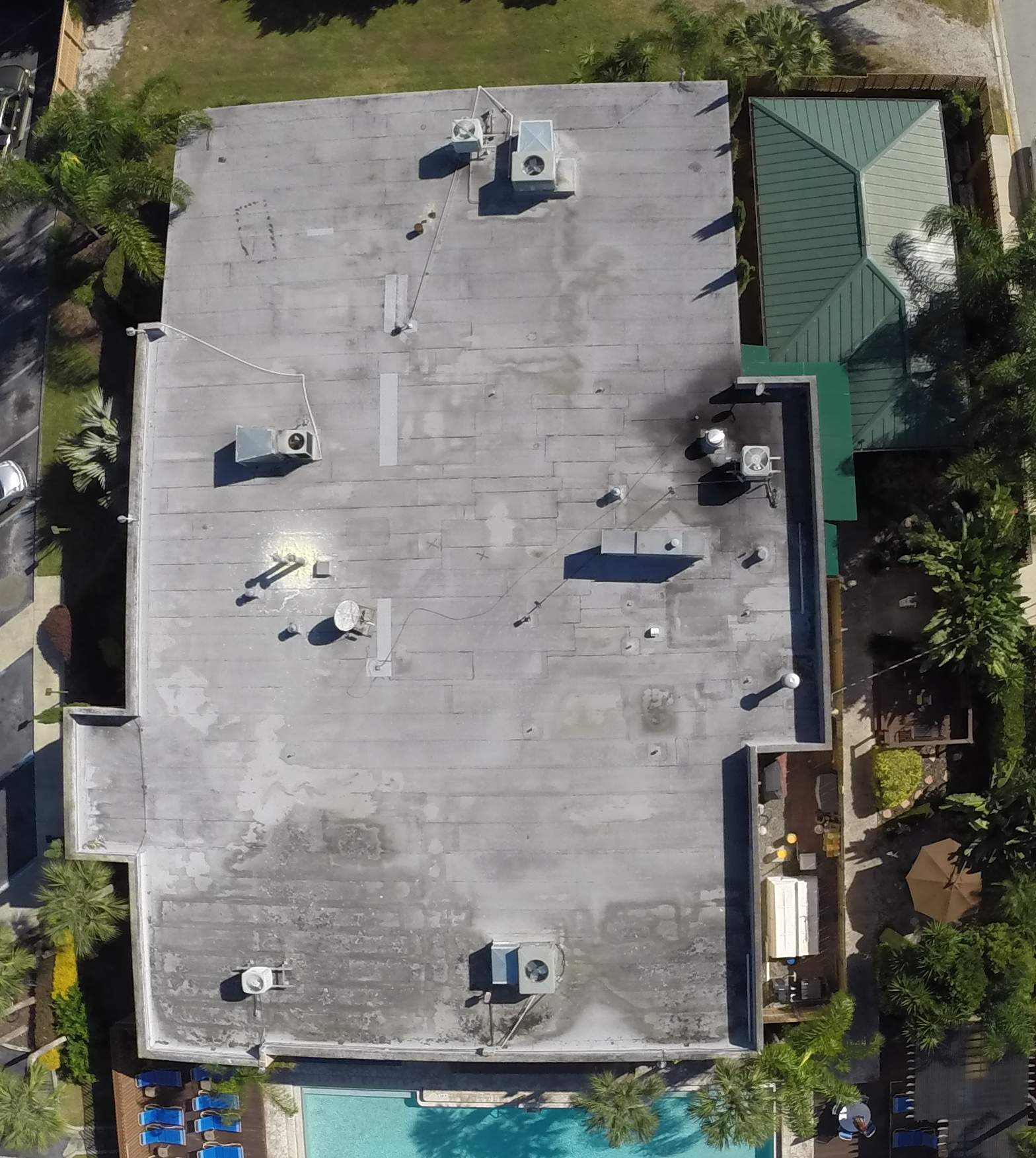

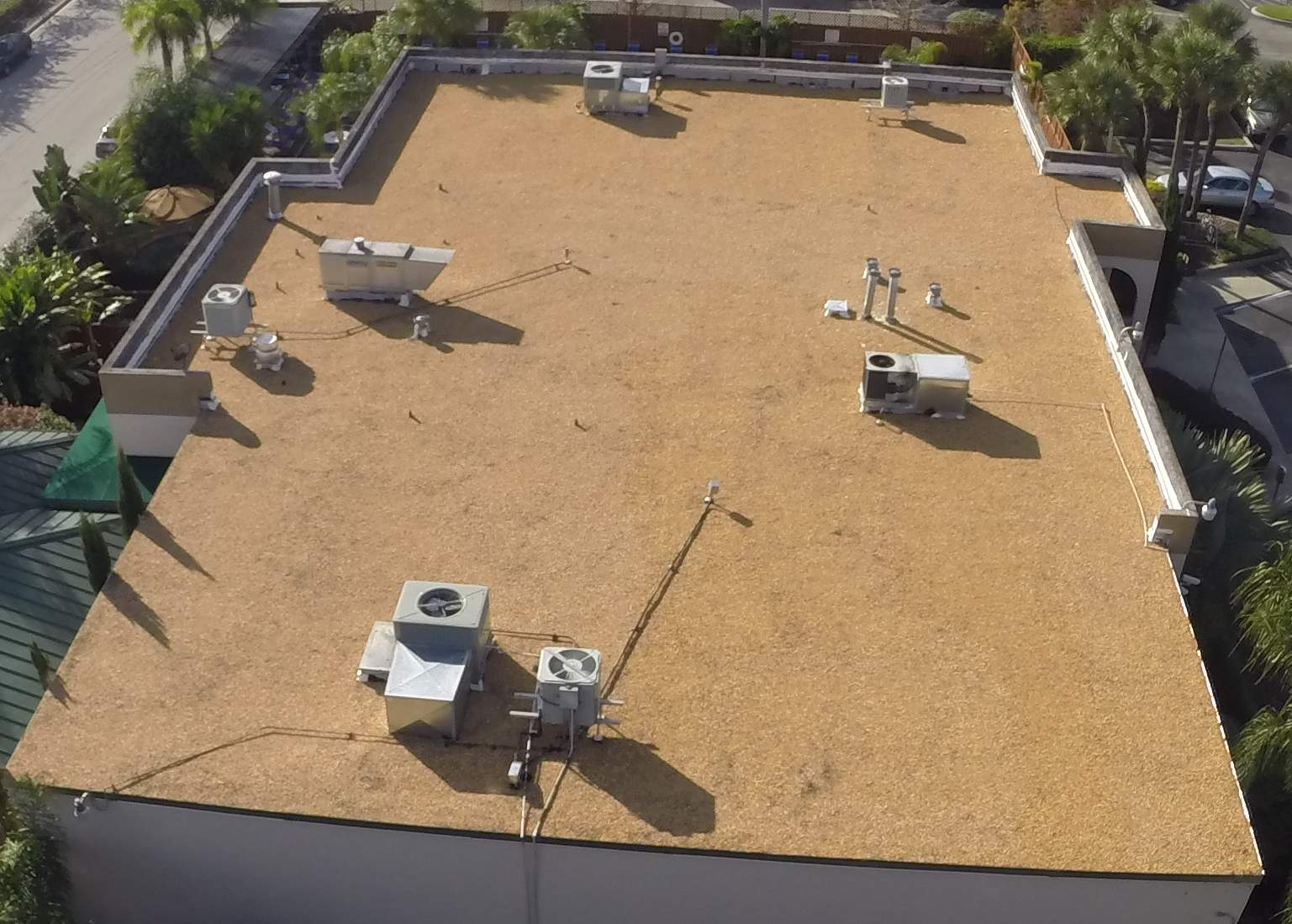

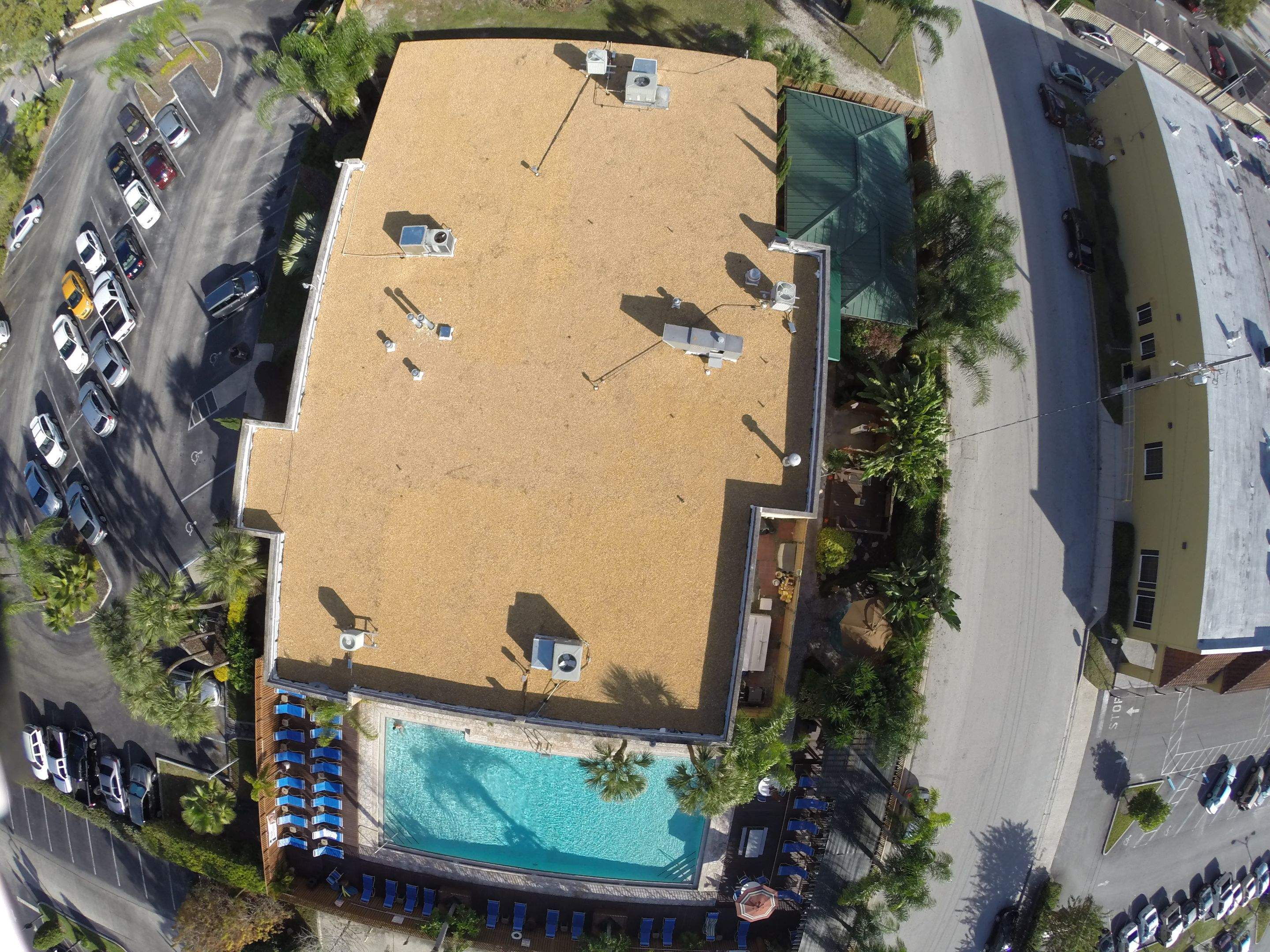

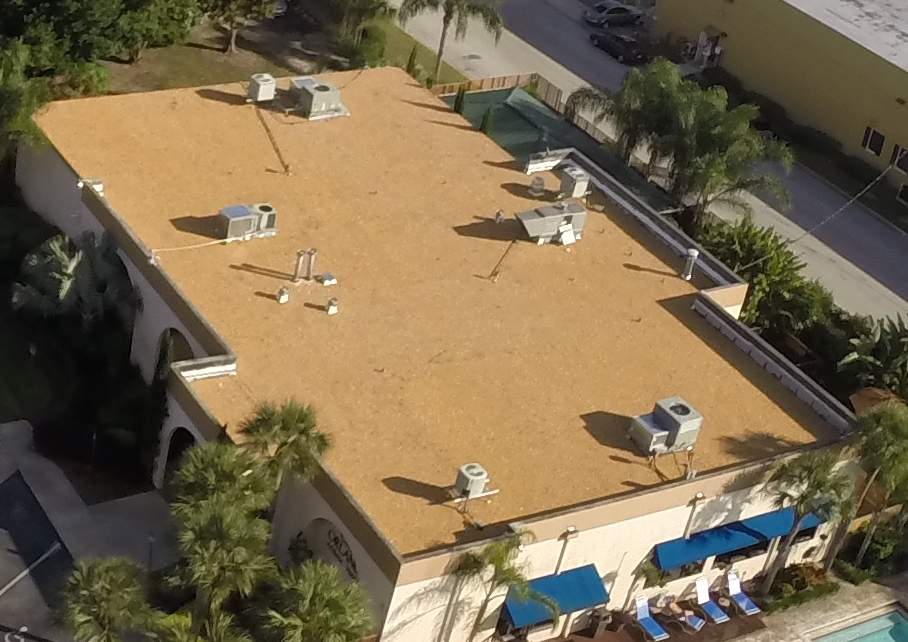

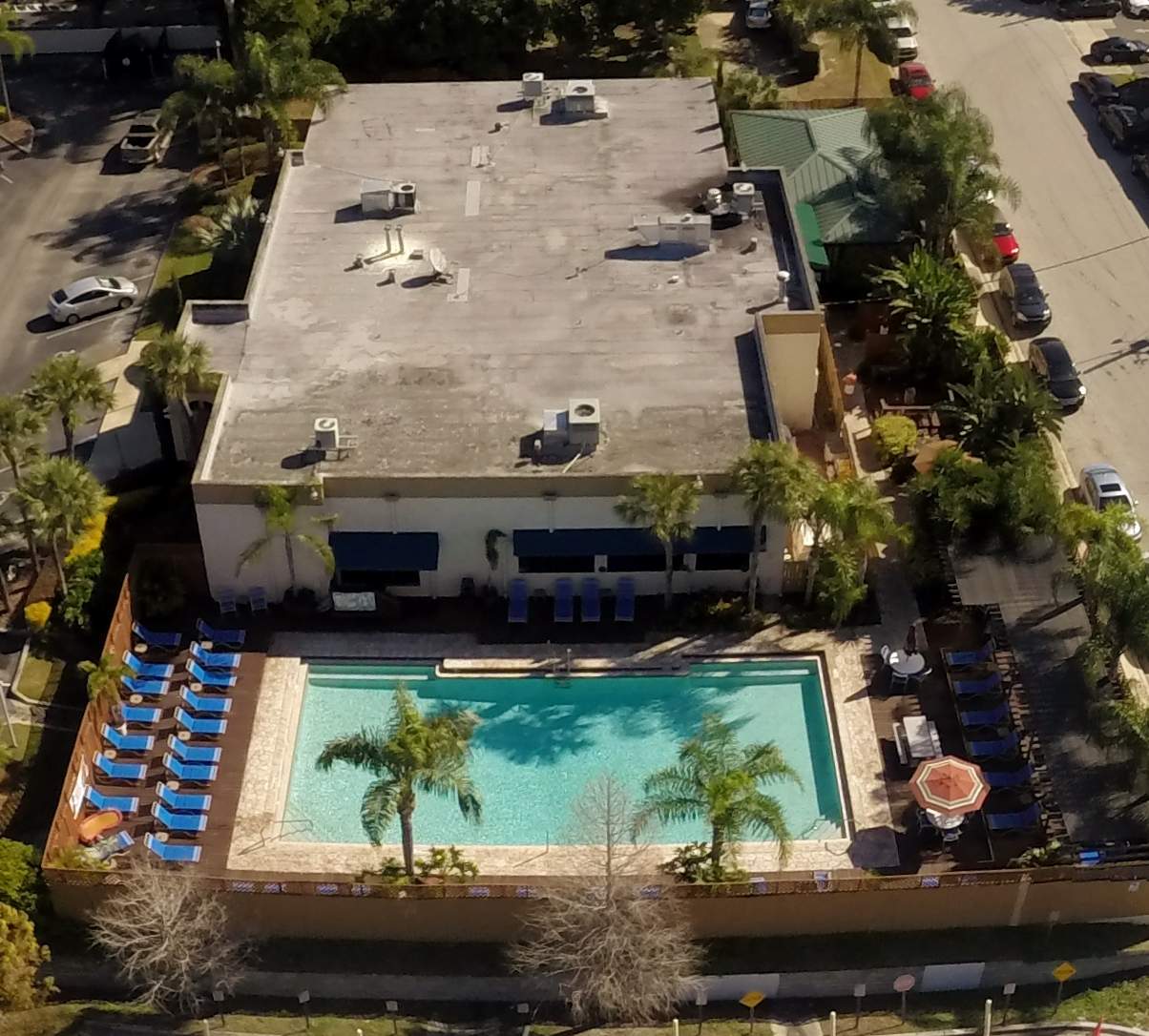

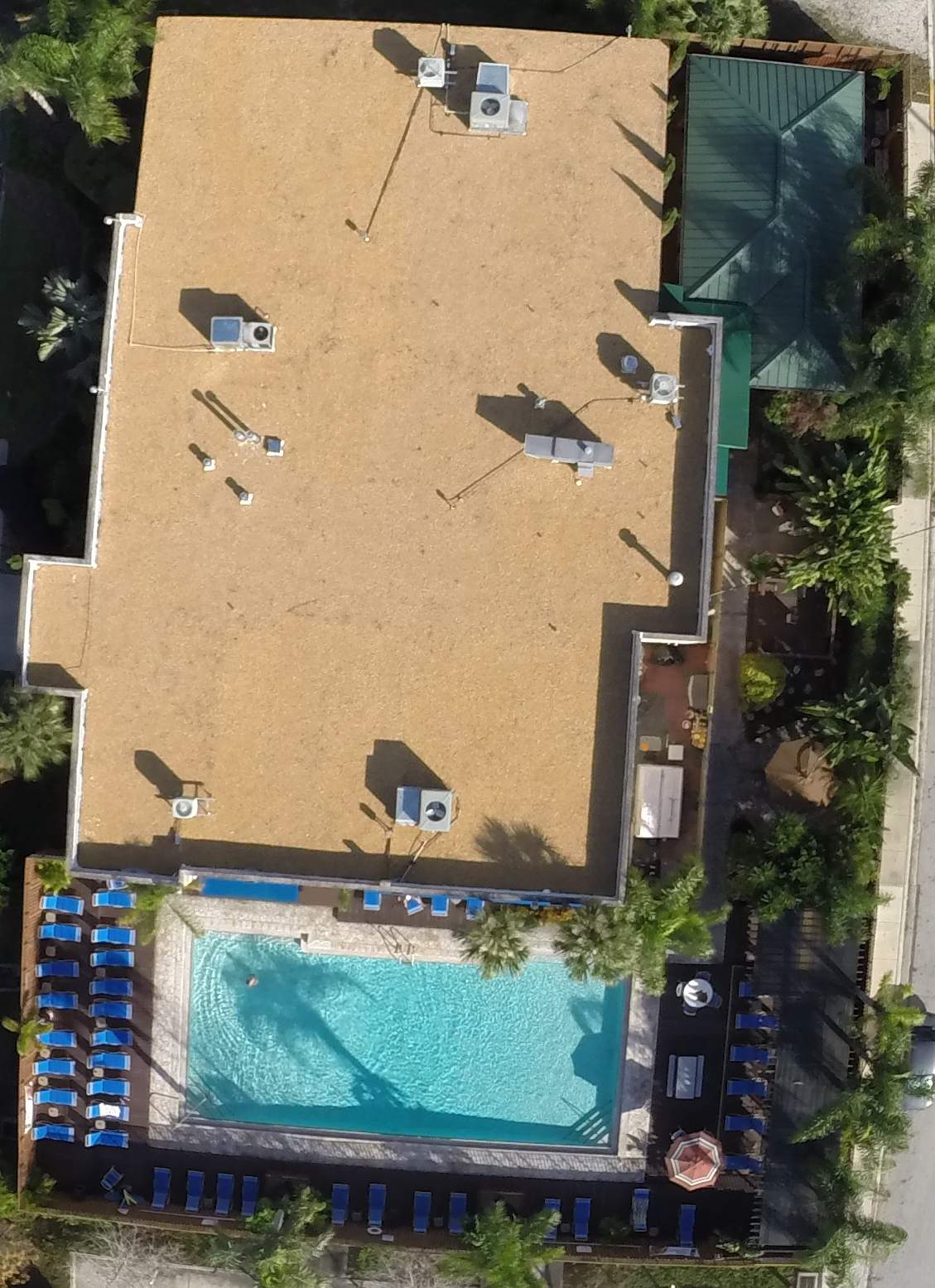

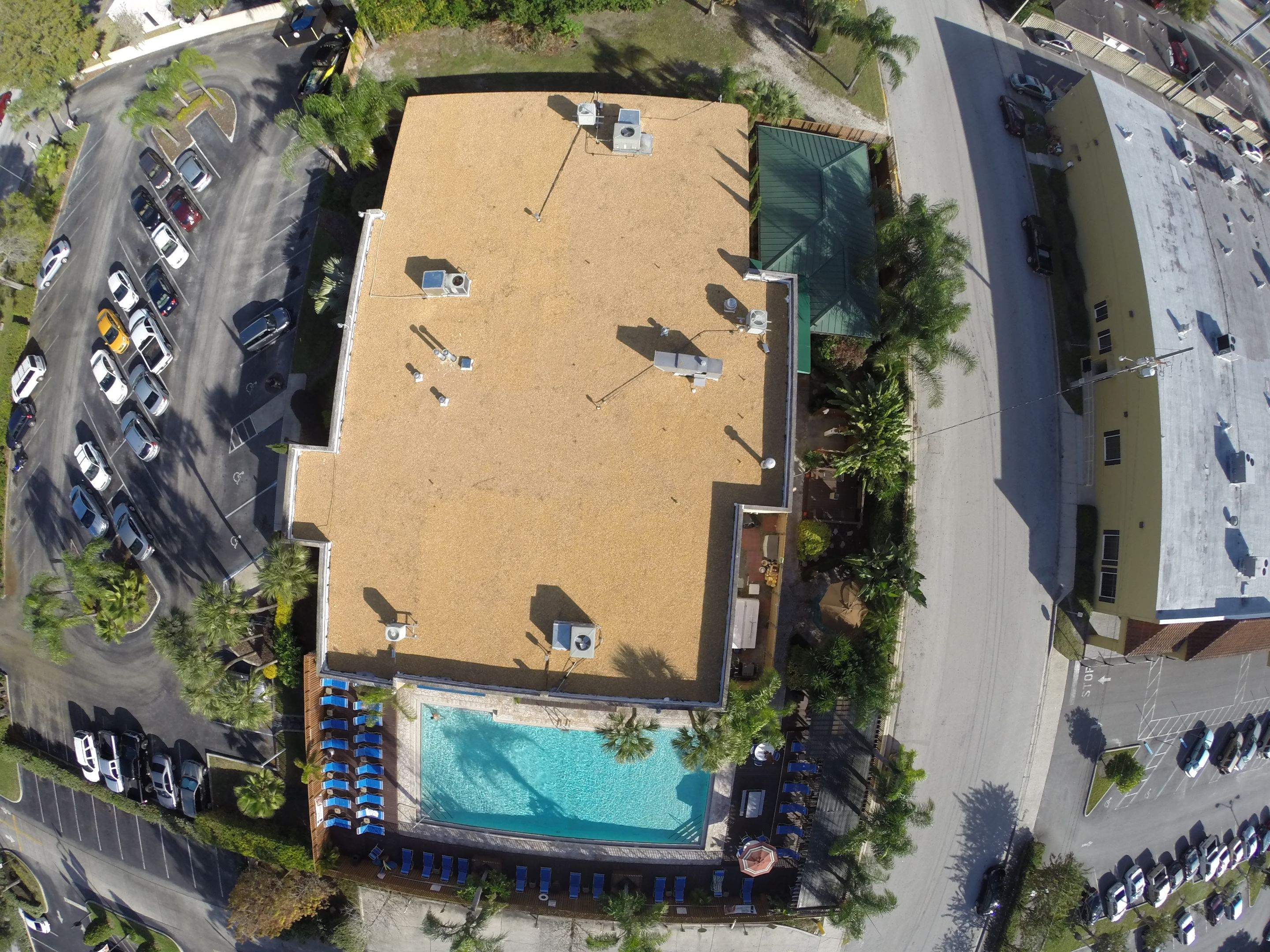

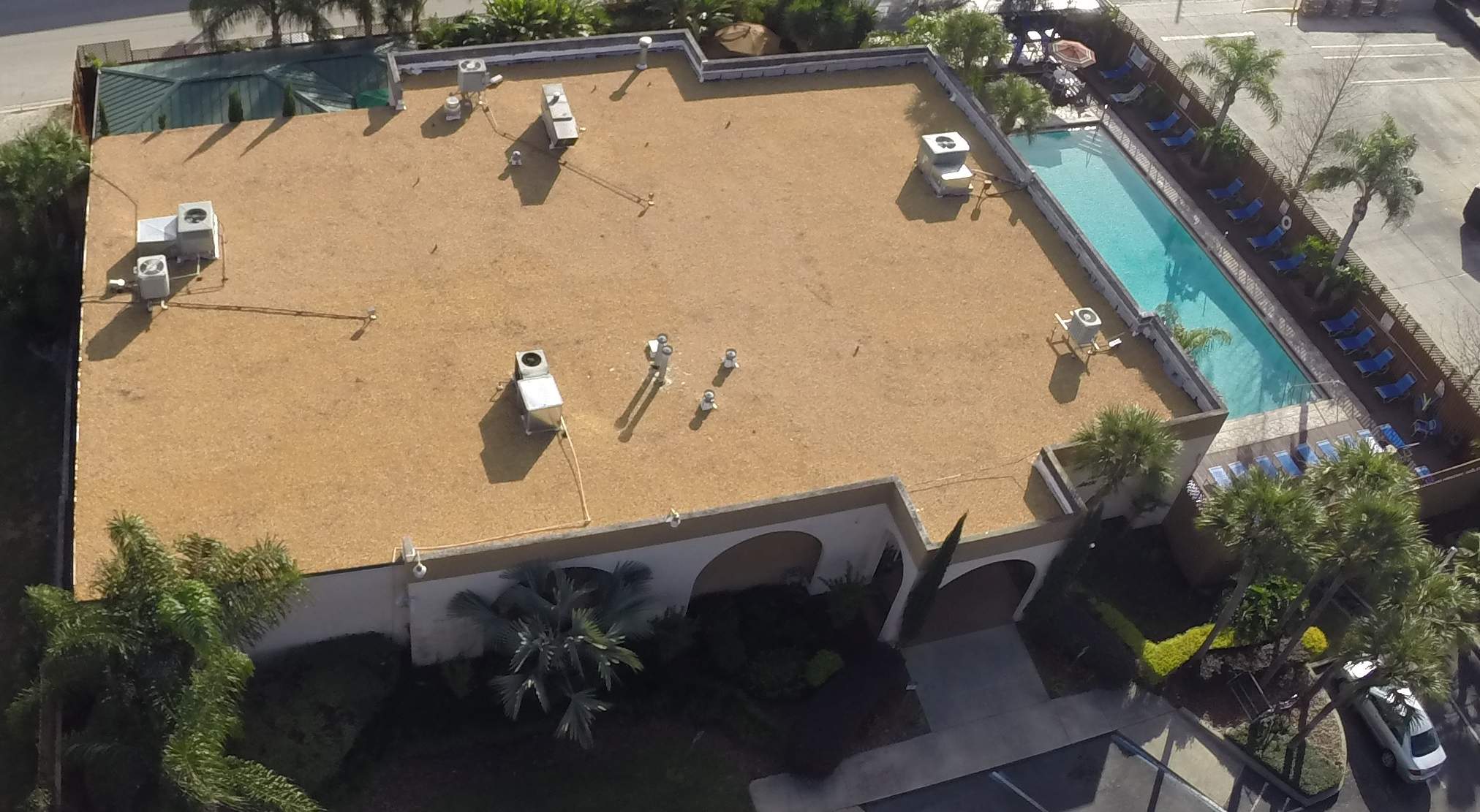

Club Orlando – Drainage & Edge Detail Focused Commercial Reroof 4-Ply BUR System | Wind-Resistant Coping | 20-Year NDL Warranty Gold Key Roofing was contracted to correct chronic leak issues on an aging modified bitumen roof system at Club Orlando. The existing assembly had multiple failure points caused by deteriorated seams, abandoned HVAC units, outdated electrical penetrations, and compromised edge conditions — all contributing to recurring water intrusion. Drainage & Penetration Corrections Before installing the new roofing system, our team removed abandoned rooftop AC units and properly rebuilt those areas to eliminate future water traps. All obsolete electrical outlets and penetrations were cleaned up, sealed, and reinforced to reduce vulnerability at common leak points. We evaluated slope and water flow patterns to ensure positive drainage across the roof surface — a critical factor in preventing ponding water and premature membrane breakdown on low-slope commercial roofs. 4-Ply Built-Up Roofing (BUR) Installation The new system consists of a 4-ply Built-Up Roofing (BUR) assembly, providing multiple layers of redundancy for superior waterproofing protection. BUR systems are well known for durability, impact resistance, and long-term performance on commercial structures with consistent foot traffic and mechanical equipment servicing. New Perimeter Coping & Wind Protection We installed new perimeter coping metal to secure the roof edge and enhance wind uplift resistance. Properly installed coping is essential for protecting the roof termination points — often the first area to fail during severe weather events in Florida. This upgrade significantly improves edge durability and long-term system performance. Business Remained Fully Operational Club Orlando remained open throughout construction. Our crews maintained controlled work zones, debris management protocols, and coordinated scheduling to ensure minimal disruption to guests and daily operations. 20-Year NDL Manufacturer Warranty The owner received a 20-Year NDL (No Dollar Limit) manufacturer-backed warranty, covering all leaks and product defects for two decades. After years of dealing with recurring roofing problems, this provides verified long-term protection and accountability. Project Highlights: Removal of failed Modified Bitumen roofing system Abandoned HVAC removal and penetration rebuild Electrical cleanup and waterproofing reinforcement 4-Ply Built-Up Roofing (BUR) system New wind-resistant perimeter coping Positive drainage improvements 20-Year NDL manufacturer warranty Commercial facility open during entire project Gold Key Roofing specializes in commercial BUR systems, drainage correction, wind-rated edge metal, and long-term NDL warranty-backed roofing solutions throughout Central Florida.
BUR 4 Ply, New Scuppers, Commercial
Club Orlando – Drainage & Edge Detail Focused Commercial Reroof
Club Orlando – Drainage & Edge Detail Focused Commercial Reroof 4-Ply BUR System | Wind-Resistant Coping | 20-Year NDL Warranty Gold Key Roofing was contracted to correct chronic leak issues on an aging modified bitumen roof system at Club Orlando. The existing assembly had multiple failure points caused by deteriorated seams, abandoned HVAC units, outdated electrical penetrations, and compromised edge conditions — all contributing to recurring water intrusion. Drainage & Penetration Corrections Before installing the new roofing system, our team removed abandoned rooftop AC units and properly rebuilt those areas to eliminate future water traps. All obsolete electrical outlets and penetrations were cleaned up, sealed, and reinforced to reduce vulnerability at common leak points. We evaluated slope and water flow patterns to ensure positive drainage across the roof surface — a critical factor in preventing ponding water and premature membrane breakdown on low-slope commercial roofs. 4-Ply Built-Up Roofing (BUR) Installation The new system consists of a 4-ply Built-Up Roofing (BUR) assembly, providing multiple layers of redundancy for superior waterproofing protection. BUR systems are well known for durability, impact resistance, and long-term performance on commercial structures with consistent foot traffic and mechanical equipment servicing. New Perimeter Coping & Wind Protection We installed new perimeter coping metal to secure the roof edge and enhance wind uplift resistance. Properly installed coping is essential for protecting the roof termination points — often the first area to fail during severe weather events in Florida. This upgrade significantly improves edge durability and long-term system performance. Business Remained Fully Operational Club Orlando remained open throughout construction. Our crews maintained controlled work zones, debris management protocols, and coordinated scheduling to ensure minimal disruption to guests and daily operations. 20-Year NDL Manufacturer Warranty The owner received a 20-Year NDL (No Dollar Limit) manufacturer-backed warranty, covering all leaks and product defects for two decades. After years of dealing with recurring roofing problems, this provides verified long-term protection and accountability. Project Highlights: Removal of failed Modified Bitumen roofing system Abandoned HVAC removal and penetration rebuild Electrical cleanup and waterproofing reinforcement 4-Ply Built-Up Roofing (BUR) system New wind-resistant perimeter coping Positive drainage improvements 20-Year NDL manufacturer warranty Commercial facility open during entire project Gold Key Roofing specializes in commercial BUR systems, drainage correction, wind-rated edge metal, and long-term NDL warranty-backed roofing solutions throughout Central Florida.
